INDIAN® SPRINGFIELD DARKHORSE
$20,999 THUNDER BLACK SMOKE
EMBRACE YOUR DARK SIDE

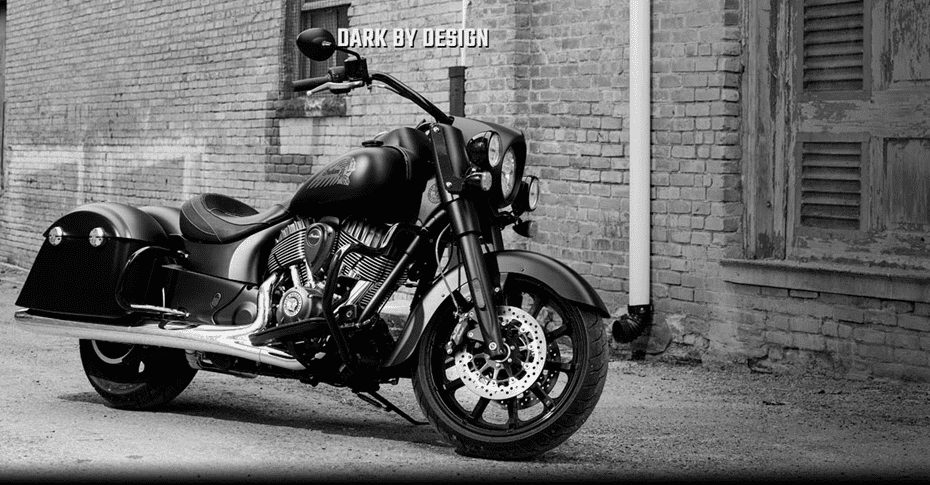

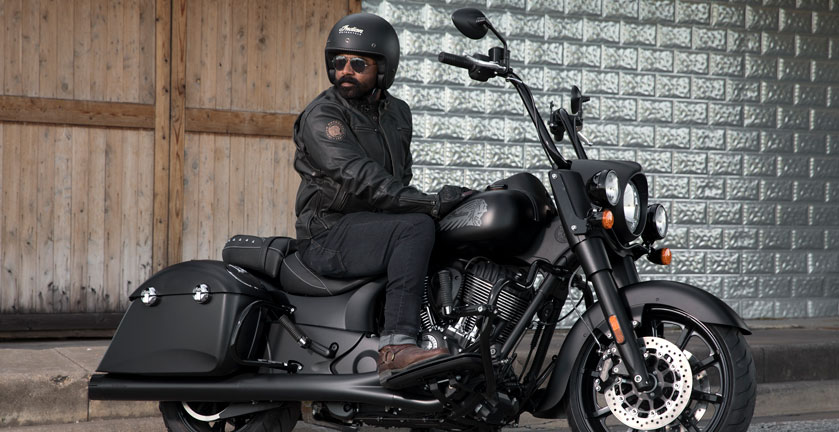

Introducing the Indian® Springfield Dark Horse. Matte-black finish. Gloss black details. Even the Thunder Stroke 111 V-Twin engine is cloaked in shadow. With a quick release windshield and an open front fender exposing a 19-inch ten-spoke blacked-out front wheel. It's not just covered in black. It's jammed with features. Welcome to the Dark Horse family.
- Don’t be afraid of the dark – ride it.
- Leave bystanders in awe with a blacked-out 19” front wheel.
- Don’t be part of the pack. Lead it.

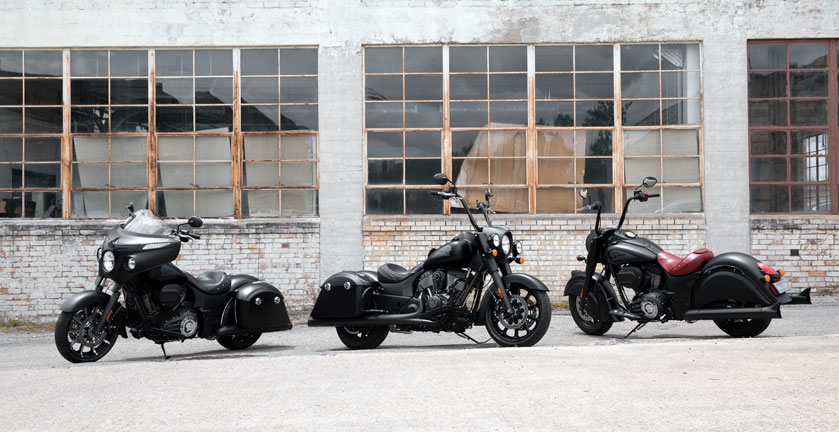

- Welcome Springfield to the Dark Horse family.
- Pave the way with gloss black highway bars, highway lights and remote locking hard saddlebags.

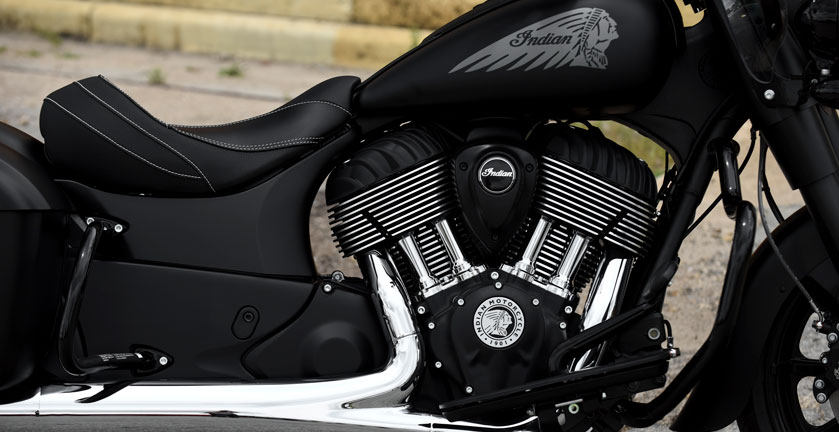

- A blacked-out Thunder Stroke® 111 V-Twin engine delivers 119 ft-lbs of torque for head snapping acceleration in all 6 gears.

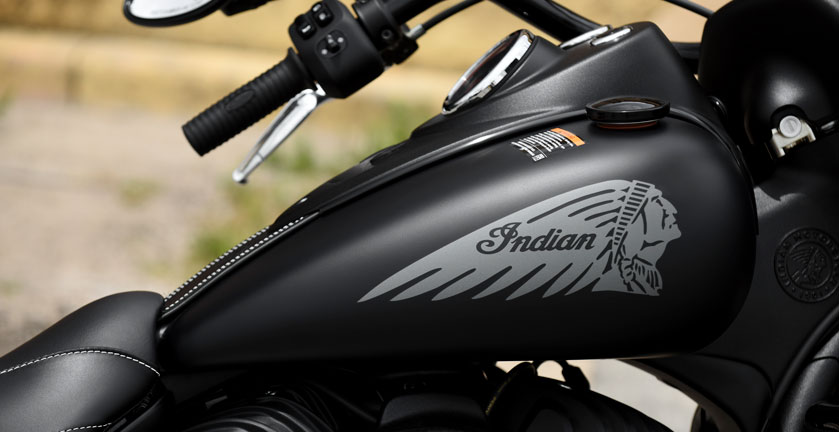

- A smoke gray headdress on the tank completes this bold look.
- The Indian® Springfield® Dark Horse® has it all: ABS, keyless ignition, cruise control and internally wired handlebars.
- Embrace your dark side.
SPECIFICATIONS
ENGINE
- Engine Type
- Thunder Stroke® 111
- Displacement
- 111 cu in (1811 cc)
- Bore x Stroke
- 3.976 in x 4.449 in (101 mm x 113 mm)
- Compression Ratio
- 9.5:1
- Electronic Fuel Injection System
- Closed loop fuel injection / 54mm bore
DRIVETRAIN
- Primary Drive
- Gear Drive Wet Clutch
- Drive/Driven Clutch
- Wet, Multi-Plate
- Final Drive
- 2.2 : 1
PERFORMANCE
- Peak Torque
- 119 ft-lbs (161.6 N m)
- Peak Torque RPM
- 3000 rpm
GEAR RATIO (OVERALL)
- 1st
- 9.403 : 1
- 2nd
- 6.411 : 1
- 3rd
- 4.763 : 1
- 4th
- 3.796 : 1
- 5th
- 3.243 : 1
- 6th
- 2.789 : 1
SUSPENSION
- Suspension: Front - Type/Travel
- Telescopic Fork / 4.7 in (119 mm) - Cartridge Type
- Front Fork Tube Diameter
- 46 mm
- Suspension: Rear - Type/Travel
- Single Shock w/ Air Adjust / 4.5 in (114 mm)
CHASSIS
- Brakes/Front
- Dual / 300 mm Floating Rotor / 4 Piston Caliper
- Brakes/Rear
- Single / 300 mm Floating Rotor / 2 Piston Caliper
- Wheels/Front
- Cast 19 in x 3.5 in
- Wheels/Rear
- Cast 16 in x 5 in
- Tires/Front
- Dunlop® American Elite 130/60B19 61H
- Tires/Rear
- Dunlop® Elite 3 Multi-Compound 180/60R16 80H
- Exhaust
- Split Dual Exhaust w/ Cross-over

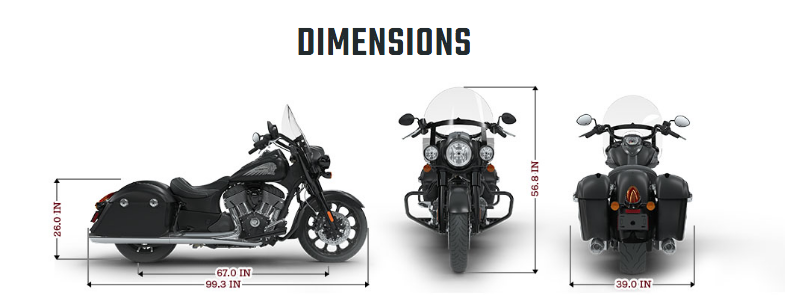

DIMENSIONS
- Wheelbase
- 67.0 in (1701 mm)
- Seat Height
- 26.0 in (660 mm)
- Ground Clearance
- 5.6 in (142 mm)
- Overall Height
- 56.8 in (1442 mm)
- Overall Length
- 99.3 in (2522 mm)
- Overall Width
- 39.0 in (990 mm)
- Rake
- 25°
- Trail
- 5.2 in (133 mm)
- Fuel Capacity
- 5.5 gal (20.8 l)
- GVWR
- 1385 lbs (628 kg)
- Weight (Empty Tank / Full of Fuel)
- 818 lbs / 850 lbs (371 kg / 386 kg)
FEATURES
- Color / Graphics
- Thunder Black Smoke
STANDARD
- Standard Equipment
- ABS; Cast Aluminum Frame with Integrated Air-Box; Cruise Control; Highway Bar; Indian® Script Tank Badge; Keyless Ignition; Quick Release Windshield; Quick Release Remote-Locking Hard Saddlebags, Tire Pressure Monitoring; Light Bar
ELECTRICAL
- Lights
- Headlight; Driving/Tail/Brake Lights; Turn Signals; License Plate Light; Speedometer with Indicator Lights
- Gauges
Tank Mounted Electronic Speedometer with Odometer; Dual Tripmeters; Digital Tachometer; Ambient Air Temperature; Fuel Range; Average Fuel Economy; Battery Voltage; Gear Position Display; Real-Time Clock; Vehicle Trouble Code Read-Out; Heated Grip Level (If Heated Grips Installed); Low Engine Oil Pressure; 9 LED Telltale Indicators: Cruise Control Enabled, Cruise Control Set, Neutral, High Beam, Turn Signal, ABS, Check Engine, and MPH or Km/H Unit Designation; Tank Mounted Electronic Fuel Gauge with Low Fuel LED Indicator.
